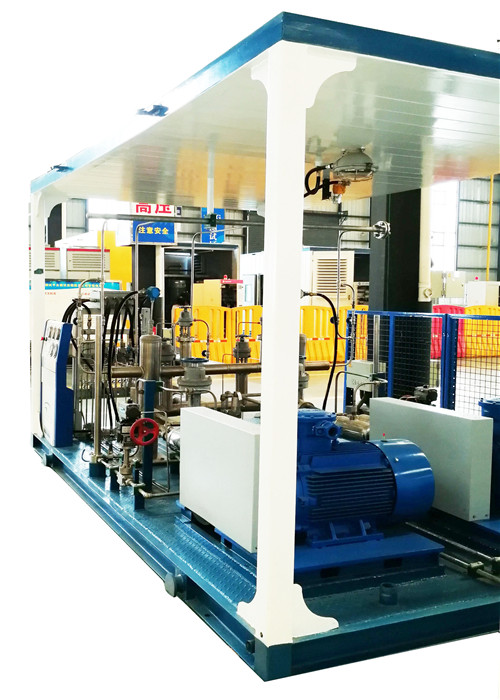

Single pump skid mounted LCNG station for LNG and CNG filling
Application:
The LCNG station is used for LNG and CNG filling.
Features:
The LCNG station has single tank and single pump, which is the basic configuration of LNG and LCNG joint construction station, which covers a small area, has low investment and good economy.
Natural gas storage capacity is about 30,000 standard square meters
Daily plus capacity:
LNG: 50-80 (450L single tank truck)
CNG: 50-200 (car)
Techinical parameters:
| Item name | Specification | Item no. | Q'ty | |
| 1 | Cryogenic tank | PN1.44MPa,V=60m³ | CFW(CDF)-60/1.2 | 1 |
| 2 | LNG immersed pump skid | PN1.6Mpa | JLF3421 | 1 |
| LNG immersed pump | Q=20m³/h,lift≥220m | 1 | ||
| Low temperature pump pool | V=0.08m³ | 1 | ||
| 3 | LNG plunger pump skid | PN1.6Mpa/27.5MPa | JLC(15/20/25)00 | 1 |
| High pressure plunger pump | Q=1000-2500L/h | 1 | ||
| 4 | High pressure gasifer skid | PN27.5MPa | JLC(15/20/25)00 | 1 |
| High pressure air temperature gasifier | Q=1000-2000Nm³/h | 1 | ||
| EAG Heater | Q=100Nm³/h | |||
| Hihg pressure water bath reheater | Q=1000-2000Nm³/h | |||
| Priority control panel | Q=2000-3000Nm³/h | JXS2000-3000 | 1 | |
| 5 | High pressure group gas storage cylinder | 3.39-12m³ | 1 | |
| 6 | LNG dispenser | PN1.6Mpa | JLF1103 | 1-2 |
| 7 | CNG dispenser | PN27.5MPa | JCJ3201 | 1-4 |
| 8 | Security monitoring system | flammable gas detector and alarm system | 1 | |
| 9 | Instrument air system | for compressor,drying machine,filter,ect., | 1 | |
| 10 | SCADA system | including upper computer, PLC cabinet, MCC cabinet, IC manaement. | 1 |
|
|
