We are focus on CNG and natural gas industries . From natural gas processing to CNG station. Provide best solutions for the customers. EPC serivce is available.
7 Years
| Ask Lasest Price | |
| Brand Name : | SCRT |
| Model Number : | RT-OT010 |
| Certification : | ISO |
| Price : | negotiable |
| Supply Ability : | 200 per month |
| Delivery Time : | 30 days |

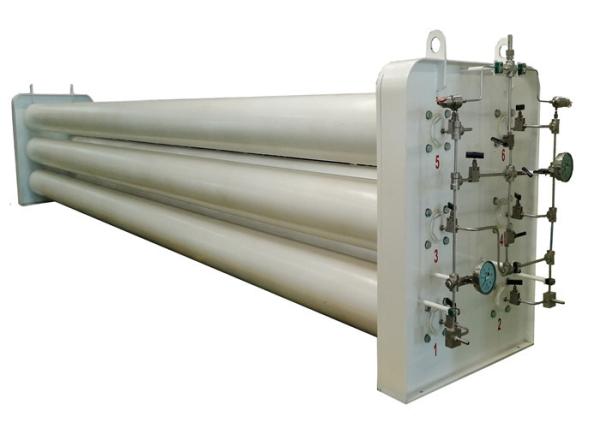

High safety skid mounted storage cylinder for CNG filling stations
Description:
CNG storage cylinder is mainly used for storing and transportation of CNG or other compressed gas at high pressure with tight tolerances, large dimensions and capacities, various specifications and high safety.
Its design, manufacture, inspection and acceptance should fully accord with the international standards, like ISO11120 and ASME and BV test if needed, which guarantees the cylinder's quality, safety performance and appearance.
Features:
The CNG storage cylinder has the below feaures.
1. Heat-spinning technology, seamless structure, and realiable for safe operation.
2. Large-size structure, fewer valves, tubes and joints, and less
danger of gas leakage.
3. Easily discharging of residue liquid.
4. Equipped with branch-tubes and accessories, easy for operation
and maintenance.
5. Add additional gas-filling devices, energy saving and
environment protection.
6. Applied to CNG.
7. Customers special specifications are welcomed,accept
customization.
Technical parameters:
| 1 | Work Pressure | 25MPa |
| 2 | Work Temperature | -50~65℃ |
| 3 | Hydraulic Pressure | 37.5MPa |
| 4 | Gas-tight test pressure | 25MPa |
| 5 | Main Material | 30CrMoLX |
| 6 | Heat Treatment | Quench + Temper |
| 7 | Cylinder class | B1 |
| 8 | Calculate volume m3 | 2 |
| 9 | Equipment weight | 2037 |
| 10 | kg±10% | |
| 11 | Cylinder length mm | 9515 |
| 12 | Medium name | CNG |
| 13 | Ratio of permanent expansion | 10% |
|
|
