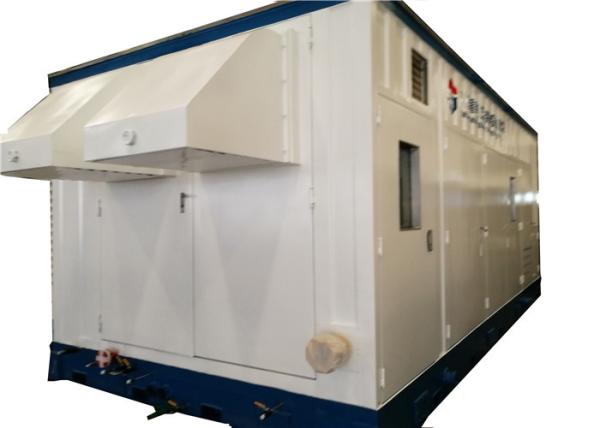

90-200 KW ZW type Oil free compressor CNG fuel station for CNG gas
Application:
The CNG fuel staion is applied in CNG gas filling.
Features:
1.The CNG fuel station include dehydration device, CNG compressor/pump; CNG gas filling machine, strorage cylinder, ect.,
2. Low invesment, less land occupation;
3. Low operation cost, no noise;
4. Wide application range, the gas source could adopt either pipeline gas or the CNG gas cylinder unit;
5. With waterproof canopy and explosion-proof lights, located outside, quick erection and quickly ready for operation.
Technical parameters:
| S/N | Model | Inlet pressure (Mpa) | Power (KW) | Capacity (Nm3/h) | Cooling style |
| 1 | D-5.0/0.8-250 | 0.8 | 132 | 550 | water or air cooling |
| 2 | D-3.22/1-250 | 1 | 90 | 370 | water or air cooling |
| 3 | D-3/3-250 | 3 | 132 | 680 | water or air cooling |
| 4 | D-2.5/4-250 | 4 | 132 | 715 | water or air cooling |
| 5 | D-1.32/6-250 | 6 | 90 | 530 | water or air cooling |
| 6 | D-1.2/10-250 | 10 | 110 | 750 | water or air cooling |
| 7 | D-0.75/12-250 | 12 | 75 | 540 | water or air cooling |
| 8 | D-0.44/100-250 | 10 | 90 | 2100 | water or air cooling |
| 9 | DY-0.2/30-250 | 30 | 37 (variable frequency) | 600 (average) | air cooling |
|
|
