We are focus on CNG and natural gas industries . From natural gas processing to CNG station. Provide best solutions for the customers. EPC serivce is available.
7 Years
| Ask Lasest Price | |
| Brand Name : | JINGKE |
| Model Number : | JKJQ-30-IIII, D |
| Certification : | ISO |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 150 sets per month |
| Delivery Time : | 20 days |

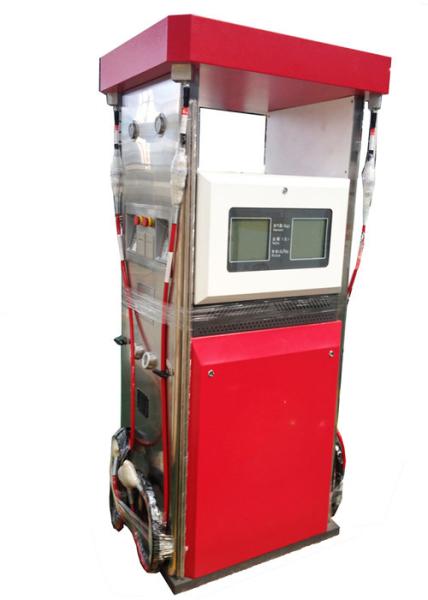

Four nozzles CNG dispenser machine for CNG gas filling station
Application:
The CNG dispenser machine is applied in CNG gas station.
Features:
The CNG dispenser machine has the below advantages:
* Best exterior construction and good appearance.
* Trustable highly precise metrology equipment.
* High performance for electronic parts.
* High quality explosion-proof motor with strong ability against power fluctuation.
Technical parameters:
| Item no. | JKJQ-20-IIII, D |
| Product standards | GB/19237 JJG996-2012 Q/75595257-9.8-2014 |
| Full performance test certificate | 2015-001 |
| Explosion proof certificate | CNEx14.3295 |
| EX mark | Ex d e ib mbⅡB T4 Gb |
| Working medium | CNG |
| Flow range(filling dispenser) | (1～30)kg/min |
| Meter accuracy | class 1.0 |
| Max.working pressure | 25Mpa |
| Rated working pressure | 20Mpa |
| Input power | AC 187V~242V 50±1Hz, P≤300W |
| Work enviroment | Enviroment temperature:-35℃～+55℃ |
| Relative humidity:≤95% | |
| Ambient atmosphere:86～110kPa | |
| unit of measurement | dollar/kg dollar/m3 |
| Weight,including package | 220kg |
|
|
