We are focus on CNG and natural gas industries . From natural gas processing to CNG station. Provide best solutions for the customers. EPC serivce is available.
7 Years
| Ask Lasest Price | |
| Brand Name : | JINGXIN |
| Model Number : | M-2.4/12-250-JX |
| Certification : | ISO,CE |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 20 sets per month |
| Delivery Time : | 60 days |

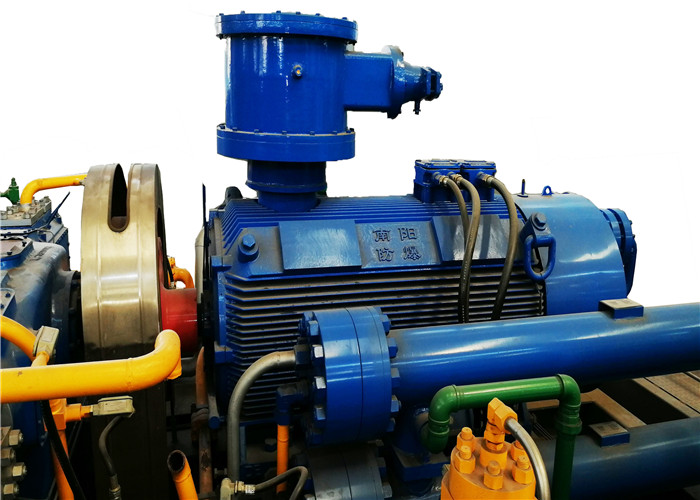

10-20 MPa Low inlet pressure CNG gas compressor used in CNG filling station
Application:
The CNG gas compressor is used in CNG filling station, which need high capacity.
Features:
The CNG gas compressor has four-row horizontal symmetrical balanced compressor, four-row cranks are 90 degrees each other, inertia moment is completely balanced, unit operation is extremely balanced, vibration is minimal.
The CNG air compressor has only one cylinder in a row. It is very convenient to maintain piston rings, packing seals and fragile parts without dismantling the cylinder.
Technical parameters:
| 41 | M-3.45/10-250-JX | 10 | 315 | 2130 | water cooling |
| 42 | M-2.4/12-250-JX | 12 | 250 | 1780 | water cooling |
| 43 | M-3/12-250-JX | 12 | 315 | 2240 | water cooling |
| 44 | M-3.35/12-250A-JX | 12 | 355 | 2530 | water cooling |
| 45 | M-2.3/13-250-JX | 13 | 250 | 1830 | air cooling |
| 46 | M2.75/13-250-JX | 13 | 315 | 2310 | water cooling |
| 47 | M-2.27/14-250-JX | 14 | 250 | 1875 | Mixed cooling |
| 48 | M2.68/14-250-JX | 14 | 280 | 2080 | air cooling |
| 49 | M-1.86/15-250-JX | 15 | 220 | 1680 | Mixed cooling |
| 50 | M-2.7/15-250C-JX | 15 | 280 | 2150 | Mixed cooling |
| 51 | M-1.32/16-250-JX | 16 | 160 | 1250 | water cooling |
| 52 | M2.05/16-250-JX | 16 | 250 | 1965 | water cooling |
| 53 | M-2.6/16-250D-JX | 16 | 315 | 2470 | Mixed cooling |
| 54 | M-2.75/17-250-JX | 17 | 315 | 2520 | water cooling |
| 55 | M-2.48/18-250D-JX | 18 | 315 | 2580 | Mixed cooling |
| 56 | M-1.75/20-250-JX | 20 | 250 | 2110 | water cooling |
| 57 | M-2.1/20-250-JX | 20 | 280 | 2375 | water cooling |
| 58 | M-2.21/22-250-JX | 22 | 315 | 2880 | water cooling |
| 59 | M-2/28-250-JX | 28 | 315 | 3210 | water cooling |
| 60 | M-1.15/30-250-JX | 30 | 220 | 2215 | water cooling |
| 61 | M-1.58/30-250-JX | 30 | 280 | 2815 | water cooling |
| 62 | M-1.75/30-250A-JX | 30 | 315 | 3160 | Mixed cooling |
| 63 | M-1.5/35-250-JX | 35 | 280 | 3040 | Mixed cooling |
| 64 | M-1.4/40-250-JX | 40 | 280 | 3200 | Mixed cooling |
| 65 | M-1.5/40-250-JX | 40 | 315 | 3580 | water cooling |
| 66 | M-1.12/45-250-JX | 45 | 250 | 3060 | water cooling |
| 67 | M-1.65/45-250-JX | 45 | 355 | 4340 | water cooling |
|
|
