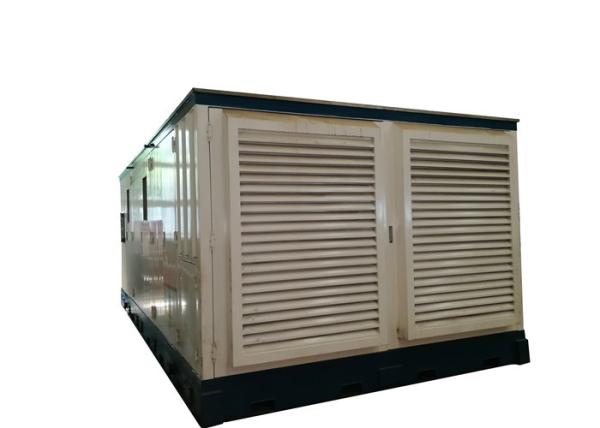

D type compressor natural gas station for CNG mother and daughter station
Application:
The natural gas staion can be use for both mother and daughter station.
Features:
1. The natural gas station can both fill the CNG to the trailer and cars.
2. The unit don't need increase one more compressor. It's money saving solution.
3. The compressor's sepccial design make the vibration low and work smoothly.
4. Cylinder is horizontal symmetry structure with oil free lubricating structure design for cylinders and packing.
5. Compressor unit is skid mounted and motor is directly driven by elastic coupling. It's convinient for transportaion and installation.
6. Water cooling compressor takes seprarable pipe cooler. The cooler is small and work well. The pipe ccorre is separable and easy to clean the dust.
Technical parameters:
| S/N | Model | Inlet pressure (Mpa) | Power (KW) | Capacity (Nm3/h) | Cooling style |
| 1 | D-5.0/0.8-250 | 0.8 | 132 | 550 | water or air cooling |
| 2 | D-3.22/1-250 | 1 | 90 | 370 | water or air cooling |
| 3 | D-3/3-250 | 3 | 132 | 680 | water or air cooling |
| 4 | D-2.5/4-250 | 4 | 132 | 715 | water or air cooling |
| 5 | D-1.32/6-250 | 6 | 90 | 530 | water or air cooling |
| 6 | D-1.2/10-250 | 10 | 110 | 750 | water or air cooling |
| 7 | D-0.75/12-250 | 12 | 75 | 540 | water or air cooling |
| 8 | D-0.44/100-250 | 10 | 90 | 2100 | water or air cooling |
| 9 | DY-0.2/30-250 | 30 | 37 (variable frequency) | 600 (average) | air cooling |
|
|
