We are focus on CNG and natural gas industries . From natural gas processing to CNG station. Provide best solutions for the customers. EPC serivce is available.
7 Years
| Ask Lasest Price | |
| Brand Name : | JINGXIN |
| Model Number : | JXJQ-Z220 |
| Certification : | ISO |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 20 per month |
| Delivery Time : | 60 days |
55-90 KW Oil free ZW type compressor natural gas fueling station
Application:

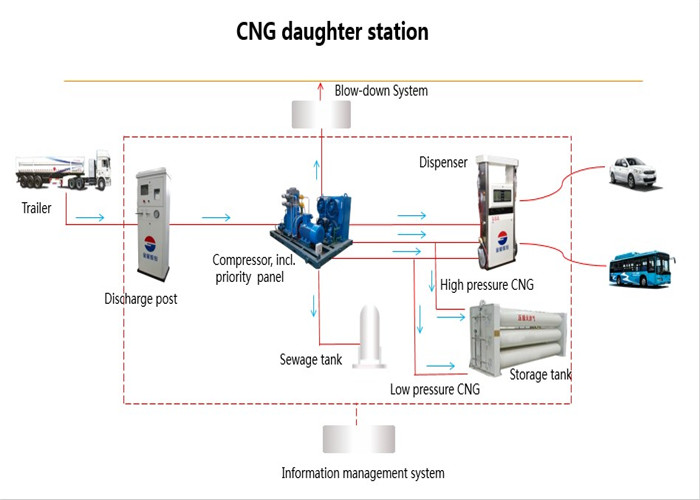

The natural gas fueling staion is used for CNG daughter station.
Features:
1. The natural gas fueling station is used for trailer tank natrual gas sources.
2. The ZW type compressor is design for oil-free lubrication.
3. Oil-free lubrication ensure clean air, no oil in gas.
4. Overall skid-Easy installation, removal transport.
5. Energy- saving-Series designed to meet the the pressure requirement of trailer tank, and achieve maximum energy efficiency.
6. Stainless steel valve components, valve pad with ring, mesh valve, mushroom valve plates, etc., made of stainless steel, PEEK material etc., to ensure the life length of 8000H.
Technical parameters:
| Model | Inlet pressure (Mpa) | Outlet pressure (Mpa) | Power (KW) | Capacity (Nm3/h) |
| ZW-0.25/20-250JX | 2.0-20 | 25 | 55 | 1000 |
| ZW-0.25/20-250JX | 2.0-20 | 25 | 75 | 1200 |
| ZW-0.25/20-250JX | 2.0-20 | 25 | 90 | 1500 |
| ZW-0.25/20-250JX | 2.0-20 | 25 | 55 | 1000 |
| ZW-3.8/1.4-250-JX | 2.0-20 | 25 | 75 | 1200 |
| ZW-3.56/1.5-250-JX | 2.0-20 | 25 | 90 | 1500 |
|
|
