| Brand Name : | SCRT |
| Model Number : | HZ-HSJ01 |
| Certification : | ASME |
| Delivery Time : | 60 days |

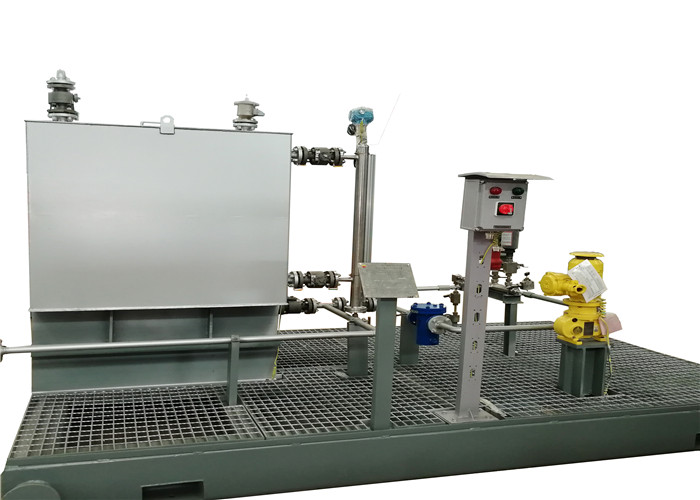

High performance corrosion inhibitor injection skid for natural gas
Description:
The components include corrosion inhibitor pump, pump inlet stop valve, strainer (overshader to remove 5 m or more of solid impurities), pump outlet with stop valve, check valve, safety return valve (outlet to pump inlet), damper pressure gauge, reflux bypass.
Main functions:
(1) For single well mobile corrosion inhibitor injection skid supply;
(2) Skid internal corrosion control injection pump in gas collection line inner wall to form a corrosion resistant film, slow down gas collection line corrosion.
Technical parameters:
| 1 | Flow | 0.002-3 m3/h |
| 2 | Meidum | methyl alcohol, corrosion inhibitor |
| 3 | Injection pressure | 0.3-70 Mpa |
| 4 | Designed pressure | 1.6-100 Mpa |
| 5 | Tank capacity | 1-20 m3 |
| 6 | Designed temperature | -40-100 ℃ |
| 7 | Materials | 16Mn, 20III, 304, 20 |
| 8 | Overall measurement | ≤ 15X3X3.5 m |
| 9 | Weight | 5-35 ton |
|
|
