High effeciency easy operation CNG Dispenser ball Valves CNG Gas Dispenser
Description:
The CNG dispensers are designed with a stainless steel strong structure and can be configured according to the needs of each refueling station for medium capacity vehicles refilling.
Features:
1. One or three-way priority refilling system.
2. Single or double-hose dispensers.

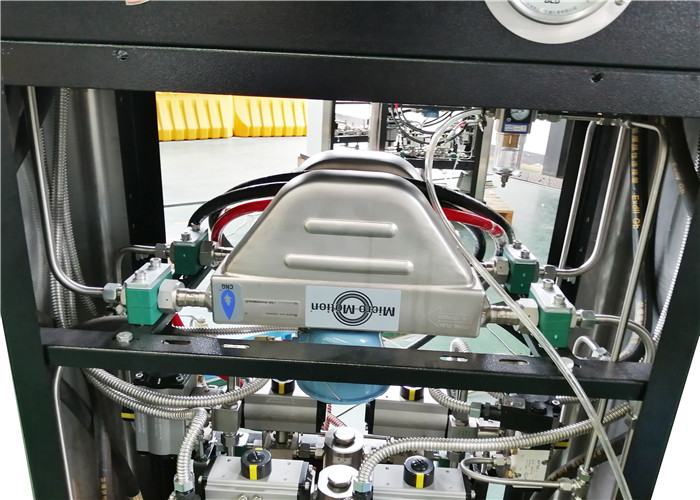

3. Mass metering system per hose.
4. Refill presetting.
5. Working pressure: 250 bar.
6. Cut pressure: 200 bar adjusted as per your requirements.
7. Excess flow shut-down system.
8. Emergency shut-down system in case of high-pressure dispatch.
9. Break-away valves.
10. Emergency shut-down system.
11. Approved to work in Class I, Division I areas.
Technical parameters:
| Item no. | JKJQ-30-II, IV |
| Product standards | GB/19237 JJG996-2012 Q/75595257-9.8-2014 |
| Full performance test certificate | 2015-001 |
| Explosion proof certificate | CNEx14.3295 |
| EX mark | Ex d e ib mbⅡB T4 Gb |
| Working medium | CNG |
| Flow range(filling dispenser) | (1～30)kg/min |
| Meter accuracy | class 1.0 |
| Max.working pressure | 25Mpa |
| Rated working pressure | 20Mpa |
| Input power | AC 187V~242V 50±1Hz, P≤300W |
| Work enviroment | Enviroment temperature:-35℃～+55℃ |
| Relative humidity:≤95% | |
| Ambient atmosphere:86～110kPa | |
| unit of measurement | dollar/kg dollar/m3 |
| Weight,including package | 220kg |
|
|
