MRC type 3X104 Nm3/d Small LNG plant LNG liquefaction plant for nautral gas

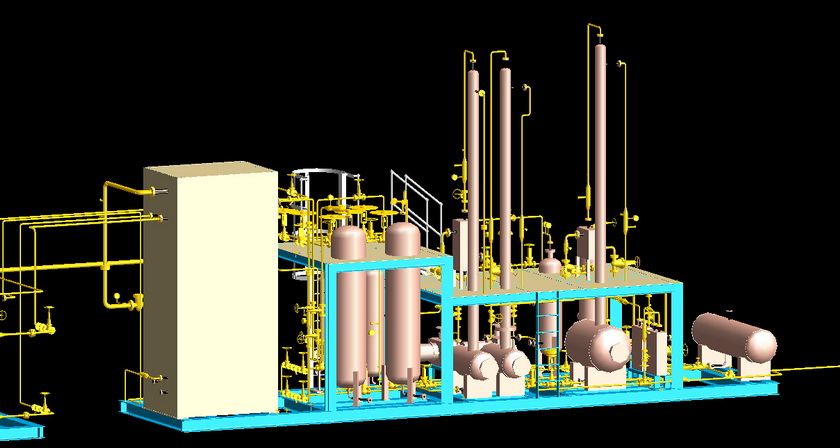

Skid mounted small LNG plant
It is suitable for the utilization of small gas beds, shale gas, flare gas, methane, biogas, and sporadic remote natural gas wells. These need a highly skid mounted type natural gas liquefaction device. It has the advantages of small investment, low cost, easy installation, easy transfer, small land occupation and fast cost recovery.
Main equipment:
Raw material gas compressor, pretreatment system, refrigerant compressor, liquefied cold box.
Applicable gas source:
Unconventional gas such as natural gas, coalbed methane, shale gas, flare gas, methane, biogas ,etc.
Main parameter
| Product model | MB-LNG | MB-LNG | MB-LNG 1250 | MB-LNG 2084 | MB-LNG 4167 |
| Processing capacity | 1X104 Nm3/d | 2X104 Nm3/d | 3X104 Nm3/d | 5X104 Nm3/d | 10X104 Nm3/d |
| Flexibility of device operation | 50%-110% | ||||
| Liquefied rate | 100% | ||||
| Process method | Mixed refrigerant cycle (MRC) | ||||
| Energy consumption of refrigeration | ≤0.32 Kwh/Nm3 LNG | ||||
| Inlet pressure | 0.2 MPa.g | ||||
| LNG product parameters | Storage pressure: 0.3 MPa.G; Temperature: -162℃ | ||||
| Explosion-proof grade | Exia II CT4 | ||||
| Area covered | ~3400m2 | ~4700m2 | |||
|
|
